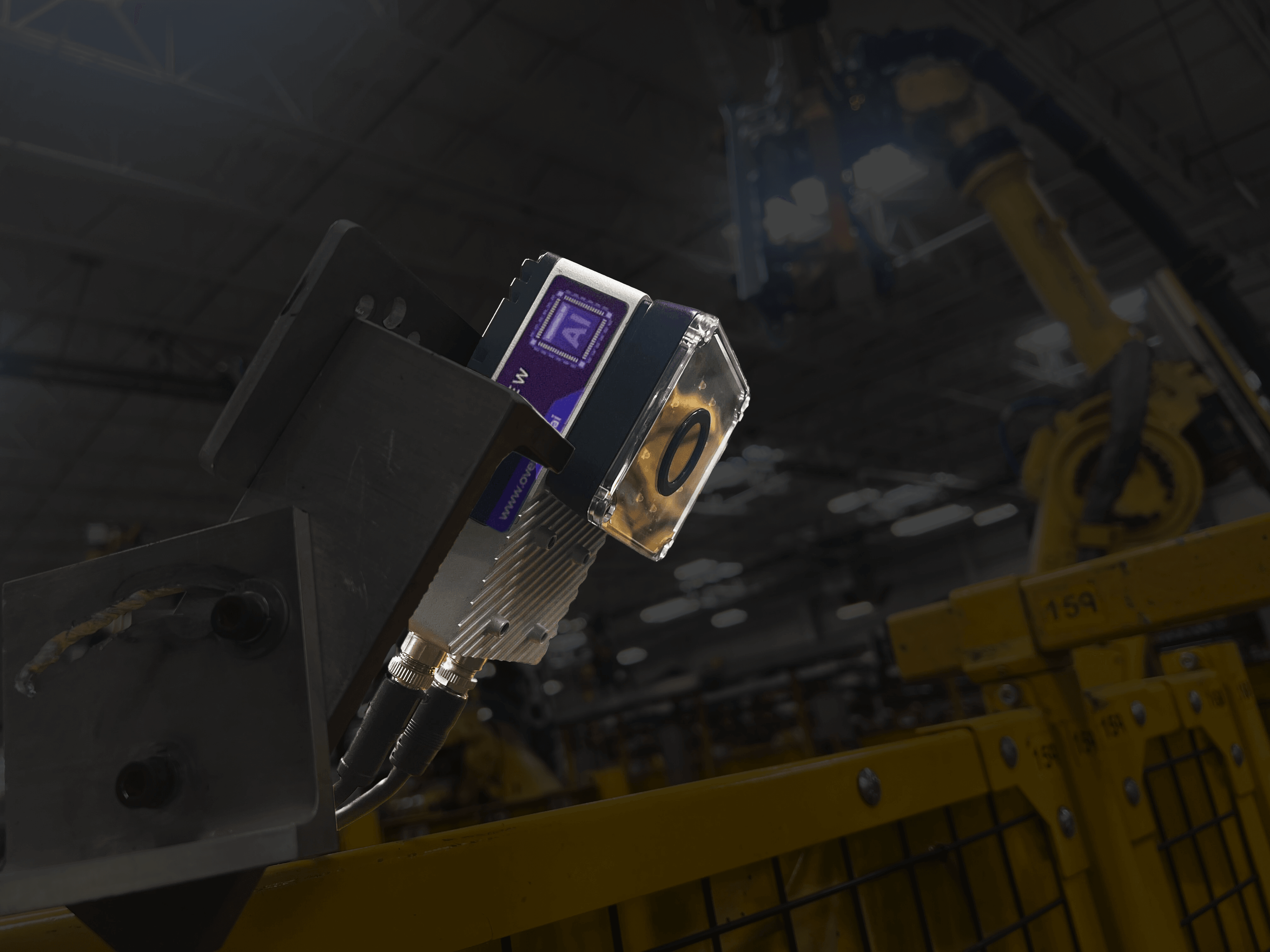

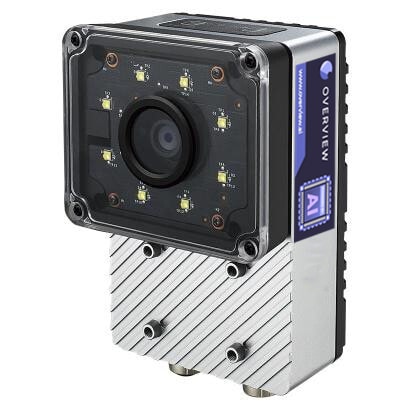

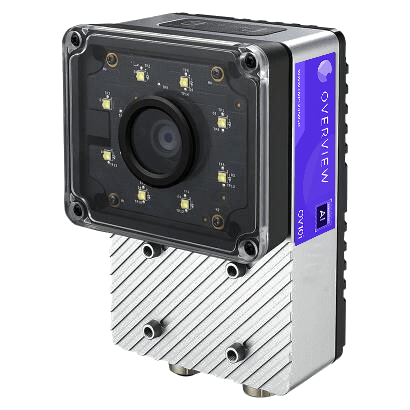

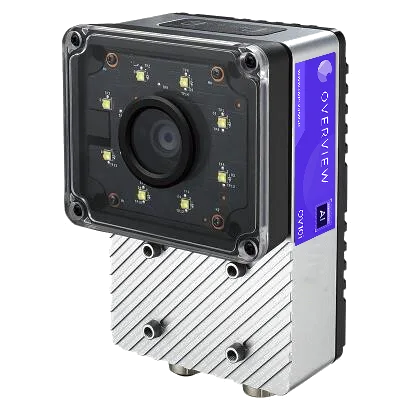

OV10i Smart Camera
Classification Solution
Compact, all-in-one smart camera with integrated AI processing. Perfect for space-constrained environments and standalone applications that need only classification.
Key Features
AI Processing (Classification Only)
Advanced built-in AI processing specifically designed for classification tasks with high accuracy and speed.
Browser Based Interface
No software installations required. Access and control your system through any web browser.
Software Controlled Focus
Precisely control focus through software for optimal image capture in any application.
Technical Specifications
| Specification | Details |
|---|---|
| Inspection Algorithm | Classification only |
| Sensor | 1.6MP SONY IMX296 |
| Actual Resolution | 1408 x 1080 |
| Lens Options | 12mm variable focal; also 6, 8, 16, 25 mm |
| Lighting | Integrated LED ring |
| Trigger Modes | PLC Trigger, Hardware Trigger, Interval Trigger, Alignment Trigger |
| Number of Inputs / Outputs | 2 digital outputs and 2 digital inputs |
| Supported Industrial Protocols | Ethernet/IP, PROFINET |
| Processor | NVIDIA Xavier NX |
| CPU | 6-core Carmel ARMv8.2 64-bit @ 1.9 GHz |
| GPU | 384-core Volta @ 1.37 GHz |
| Software Features | No software key or subscription needed |
| UI | Browser based interface |
Perfect For
Space-Constrained Environments
Ideal for tight production spaces where a compact solution is essential.
Standalone Applications
Perfect for simple pass/fail classification tasks that don't require complex analysis.
Quick Deployment
Get up and running quickly with minimal setup and configuration required.
Frequently Asked Questions
What's the difference between OV10i and other Overview products?
The OV10i is designed specifically for classification tasks only. It's a compact, all-in-one smart camera with integrated AI processing. Unlike the OV80i and OV20i which support both classification and localization, the OV10i focuses solely on pass/fail classification, making it ideal for space-constrained environments and simpler applications.
Can I upgrade from OV10i to OV20i or OV80i later?
Yes! If your needs evolve to require localization capabilities or higher resolution, you can upgrade to the OV20i (segmentation features) or OV80i (full defect localization and analysis). Your trained models and configurations can often be transferred with some adjustments.
How fast can the OV10i classify parts?
The OV10i delivers real-time classification at production speeds, typically processing 60-120 parts per minute depending on your specific setup and inspection requirements. The NVIDIA Xavier NX processor ensures consistent, high-speed performance.
Does the OV10i require cloud connectivity?
No, the OV10i runs completely at the edge with all AI processing happening on-device. No cloud connection is required for operation, though optional cloud connectivity is available for remote monitoring and data analysis.
What industrial protocols does the OV10i support?
The OV10i supports Ethernet/IP and PROFINET protocols for seamless integration with PLCs and factory automation systems. It also includes 2 digital inputs and 2 digital outputs for direct hardware integration.
